Audio Codecs


Posted by ben/ on 2018/07/25 - 0 Comments


What is an audio codec?

A: it's a file format
B: it's an encryption method
C: it's a format converter
D: it's a little wizard that lives in 3.5mm holes

The answer is actually all of the above, depending on the situation. In all cases it COdes and DECodes audio from one format to another. Sometimes so that the bandwidth/storage size is small but the sound quality is high. Other times it's to convert from a format electronics can understand (1's and 0's) to one our ears can (analog waves).

Software Codecs

In software, an audio codec is associated with the familiar MP3, AAC, OGG file extensions that store compressed audio on a hard drive or flash card, or stream it to/from a remote location. This type of codec often concerns itself with compression, saving storage space or bandwidth. The codec is typically a software library, and different codecs optimize for different levels of fidelity, compression, and computational complexity.

Hardware Codecs

A hardware codec is typically an IC that handles converting analog audio between an analog waveform and a digital signal. Sampling rate and bit depth control the signal fidelity, and usually the signal is not compressed at this stage (though it can be). The digital output of a hardware codec is usually a hardware bus like I2S, I2C, SPI, or AC-Link.

We tested a few different codecs and ended up with a system that looks like this:

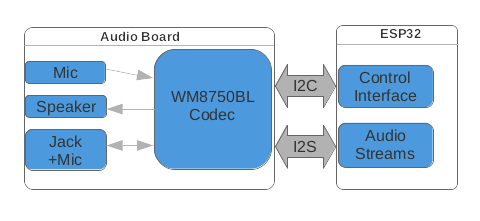

WiPhone Audio Codec Block Diagram
WiPhone Audio Codec Block Diagram

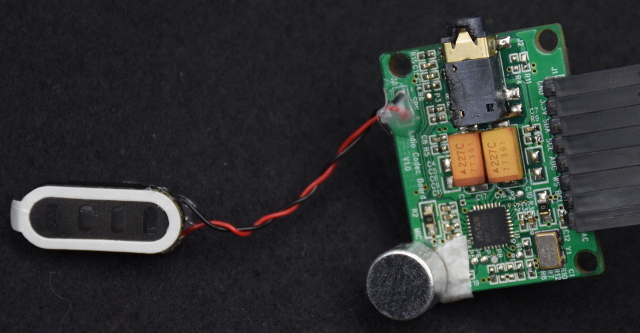

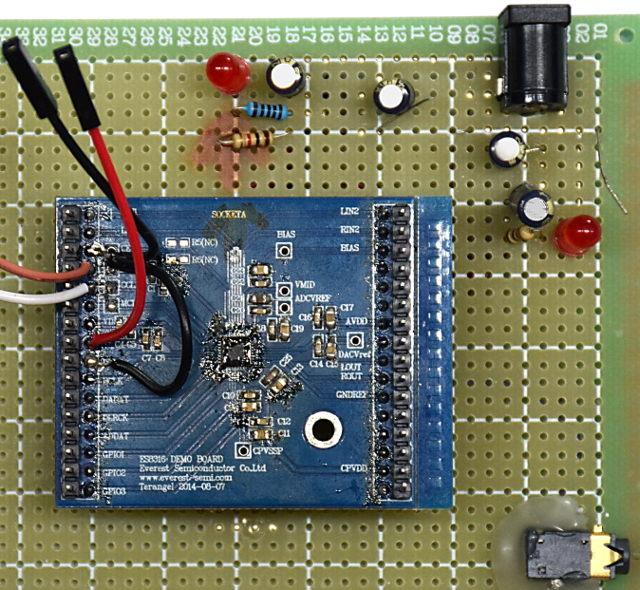

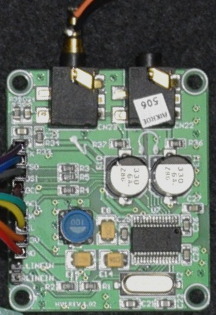

Chips we tested:
