WiPhone: An Open Source Phone That's Really Yours

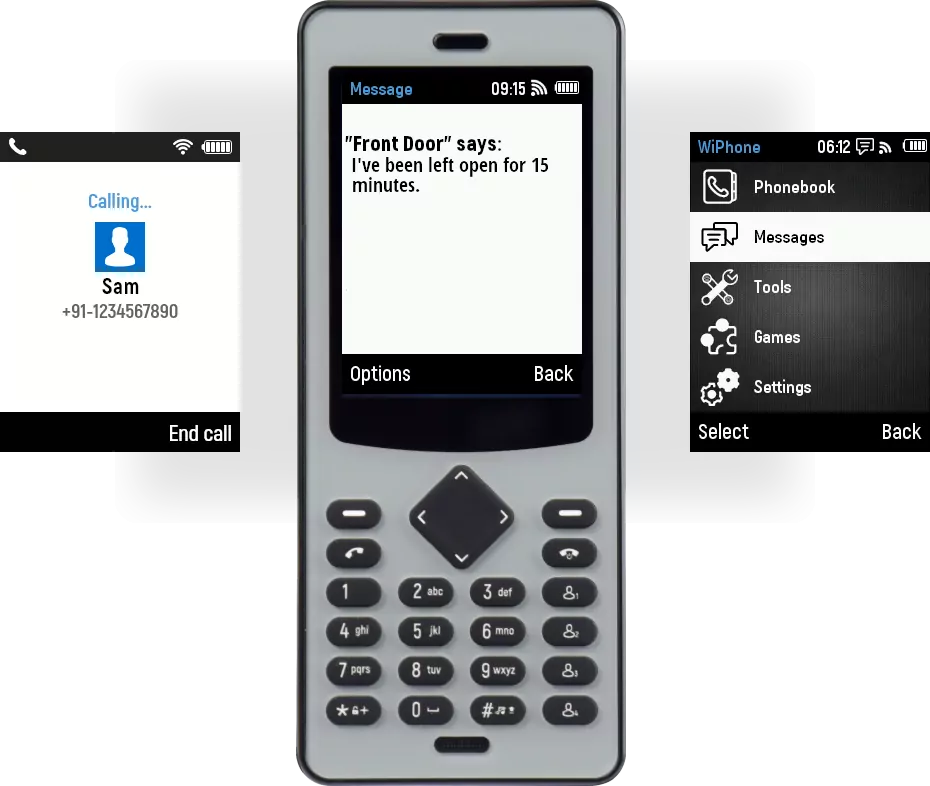

The WiPhone is a hackable, modular mobile phone which makes HD voice calls for free over WiFi.

Now shipping. Order yours now!
Estimated delivery for new orders is December

Get WiPhone

First Class Expansion Capabilities

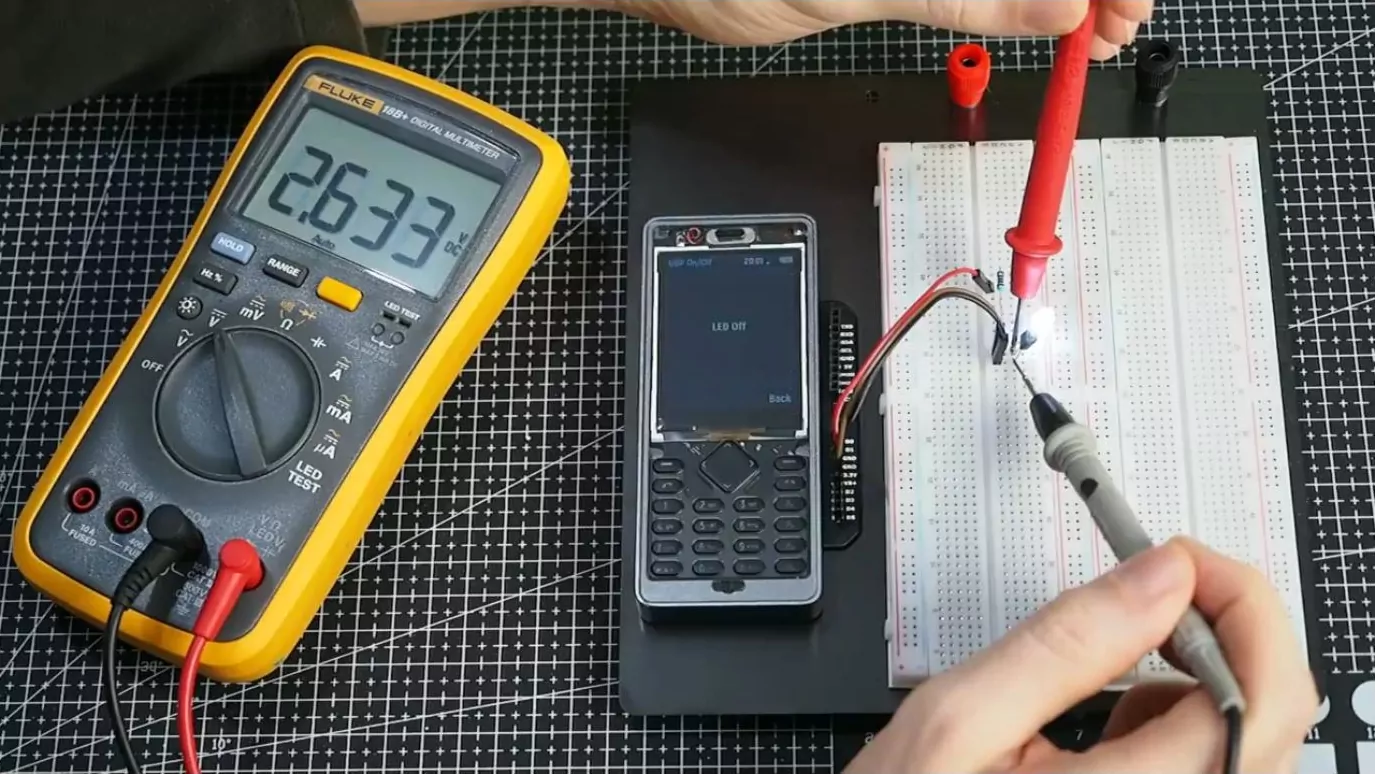

WiPhone is expandable through daughter boards. The whole back of the phone is a replaceable panel that accepts a standard 1.6mm thickness PCB, which you can use to add whatever functionality you like.

People Like The WiPhone


This is a great cross over between what people know (phones) and what people really want to do (hack).

Nathan Seidle
SPARKFUN FOUNDER

The WiPhone is a really rather neatly put together project.

Alasdair Allan
HACKSTER.IO

If you want a phone that respects your right to repair, this is the project to look at.

Brian Benchoff
HACKADAY.COM

So excited by this project I tried to make one myself.

Random Guy
YOUTUBE COMMENTS

Hack It Like It's Yours


WiPhone is built for hacking, not for some big corporation's bottom line. Complete disassembly in less than a minute, using only 6 screws. The operating system firmware is easily modified, and simple enough to be understood entirely by one motivated person.

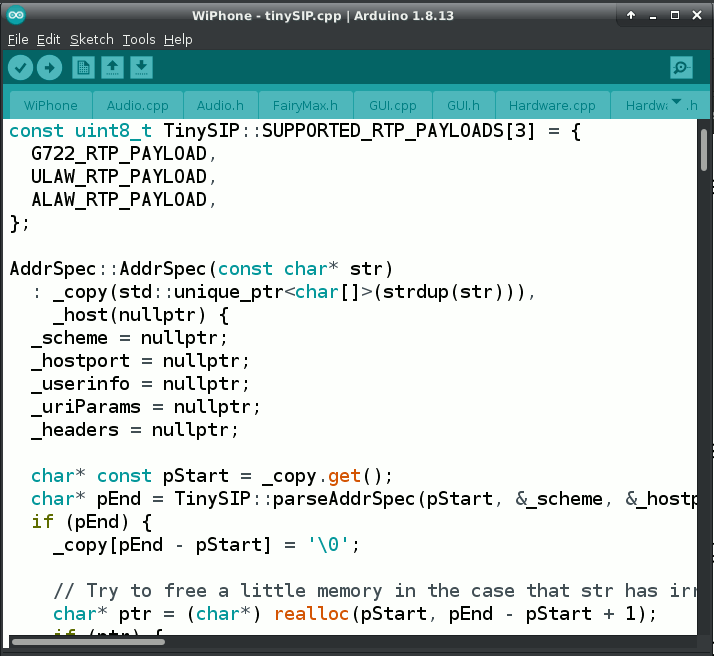

Not only is WiPhone capable of completely free calling, it's also an open source, self-contained Arduino development platform. Unlike most other dev boards it comes in a nice package, with a battery, power supply, and on/off circuitry. Once your project is done, instead of an eyesore of tangled wires and stacked boards, it's compact and visually appealing.

A Phone You Can Own

(Not One That Owns You)


Modern smartphones are more and more a tool we don't own, but instead one we're only allowed to carry around. One that serves the interests of various tracking networks, corporate boards, and government organizations. You don't own it, it owns you. It tracks you, serves you ads, and sucks away your time with mindless dopamine hits. We want a phone that's back in our control, optimized for our convenience.

JOIN THE MAIL LIST

Keep in Touch!

Join the newsletter to stay connected with WiPhone. Choose your poison:

  • Learn about upcoming features.
  • Get project updates and plans.
  • Get notified of software releases.
  • Blog post notifications.
Join WiPhone Mailing Group

Styles

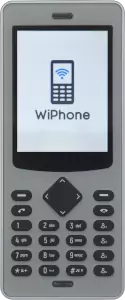

Basic Edition

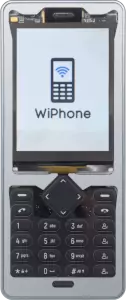

WiPhone Pro

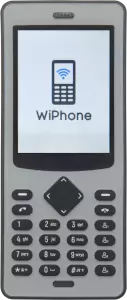

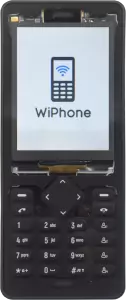

The WiPhone comes in 2 styles and 2 colors. The Basic WiPhone has a polycarbonate frame, and the Pro version as a stylish anodized aluminum frame. Both versions are available with a clear or color front face.

(click to expand)

Specifications


Overview
  • VoIP (WiFi) Phone
  • 2.4” screen (320 x 240)
  • 802.11 b/g/n WiFi
  • micro USB for charging, serial communication, and firmware updates
  • 3.5mm audio jack
  • Internal microSD slot
  • Size: 120mm x 50mm x 12.5mm
  • Weight: 80g
  • 700 mAh Battery, 8 hours talk/1 week standby time (estimated)
  • 25 button keypad, 4 reserved for user, all keys are user programmable
  • Espressif ESP32 based system, programmable in Arduino
  • Python for user applications*
  • 20 pin programmable header on back of phone
Electrical
  • 4MB PSRAM
  • 16MB Flash
  • 700 mAh Battery
  • ESP32 Dual core running at 240 MHz
  • Wi-Fi b/g/n + BT/BLE Dual Mode (Bluetooth is not yet used in the software)
  • USB serial port for charging, debugging, and serial data transfer
  • Externally accessible headers for custom daughter boards, including UART, SPI, I2C, PWM, digital I/O, ADC functions
Mechanical
  • Size: 120mm x 50mm x 12.5mm
  • Weight: 80g
  • Polycarbonate case and screen
  • Silicone keypad, backlit
  • phone back can be replaced with a PCB to expand the hardware capabilities
Software
  • Fully working VoIP phone, with calling, text messages, and contact library.
  • MicroPython for user applications*

*Python runs on a separate firmware image.
