Calls and Messages

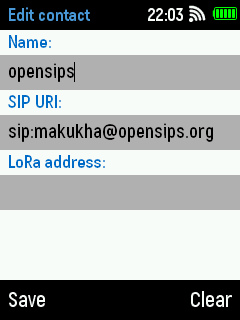

To make a SIP/VoIP call you'll first need to enter the recipient's SIP information into your contacts:

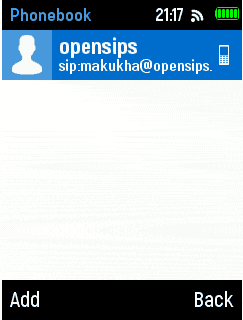

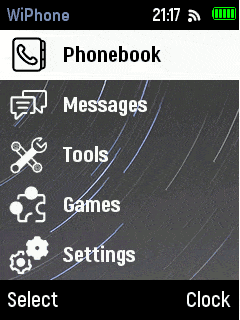

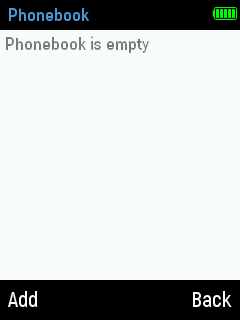

  • Select Menu > phonebook Phonebook > Add.
  • Write the name of the contact in Name field. The name can be anything easy for you to remember the contact, it doesn't need to be part of the SIP address.
  • Enter the SIP address in the SIP URI field. The format is: sip:[account_name]@server_url
  • Press the Save softkey to save the contact.

s1 s2 s3 s4

Note

If you have LoRa radio, you can store LoRa contact and send LoRa messages. For more information please visit LoRa Documentation at : https://wiphone.io/documentation/

Make a Call

  • Select Menu > phonebook Phonebook > Select Contact.
  • If you have an account with a SIP provider that supports landline calling, you can also dial the number directly as you would with any regular phone.
  • Press the call button to start dialing. You can also press OK and select Call.
  • Press the hangup button to end a call.

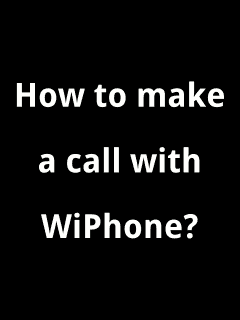

../../_images/calling.gif

Receive a Call

  • Press the call button to accept a call.
  • Press the hangup button to reject a call.

Messages

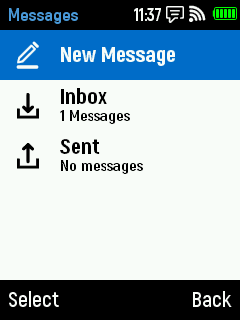

  • Select Menu > message Message > newmessage New Message.

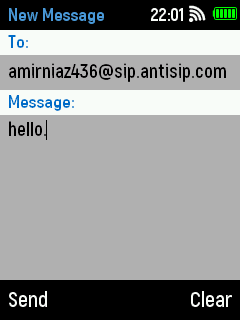

  • Enter the address of the recipient in the To field and enter the message text in the Message field.
  • Press the Send softkey to send the message.

s8 s10

OR

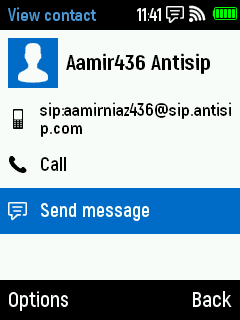

  • Select Menu > phonebook Phonebook > Select Contact.
  • Select Send Message and enter the message text.
  • Press the Send softkey to send message.

s11 s10
