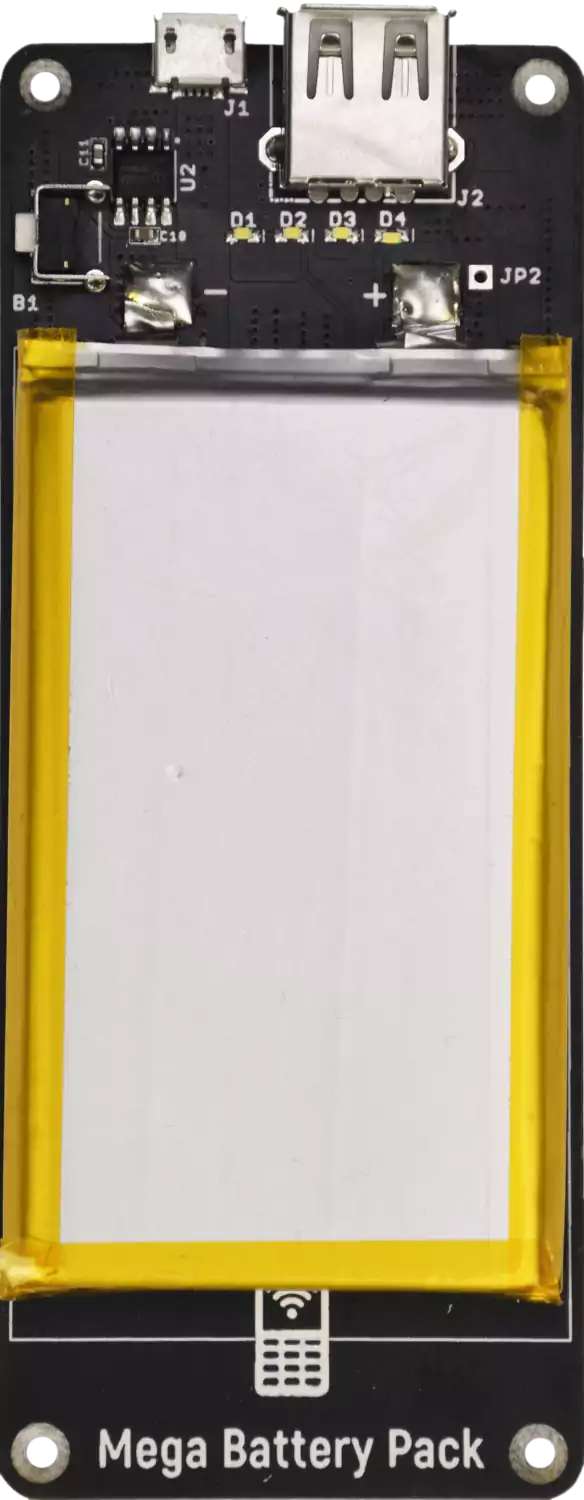

Mega Battery Pack Daughterboard
The Mega Battery Pack enhances the WiPhone’s battery life, compensating for the ESP32’s limited efficiency in WiFi-connected sleep mode. It installs seamlessly on the phone’s back, functioning like a built-in power bank. It also features an external USB port for charging other devices while powering your WiPhone.
Due to shipping restrictions, we are unable to ship the Mega Battery Pack with the battery installed. The JP904580 Lithium-Polymer Battery Cell is an example of the cell we used to test the Mega Battery Pack daughterboard. Users can purchase any LiPo cell that fits within the size specifications of 9.0×45×80 mm (Thickness × Width × Length) and solder it to the daughterboard.
USB power bank in daughterboard form factor.The Mega Battery Pack, powered by the IP5306 power management SOC, offers extended battery life and simultaneous device charging.
The WiPhone uses the ESP32 processor, which doesn’t have an efficient sleep mode when connected to WiFi. The standard battery life may not be as long as desired. That’s where the Mega Battery Pack comes in—offering extended battery life to keep your device powered for much longer.
The Mega Battery Pack is designed around an IP5306 multi-function power management SOC. The pack installs on the back of the phone and acts exactly like an external power bank, but you don't need a cable since it's connected through the daughterboard headers. It also has an external USB port capable of charging an external device simultaneously with the WiPhone.
Dimensions
| Product Size: | 12 x 5 x 0.5 cm |
| Product Weight: | 72g |
| Shipping Size: | 15 x 10 x 4 cm |
| Shipping Weight: | 115g |
Reference Materials
$36.00 + FREE SHIPPING
USB power bank in daughterboard form factor.
