Bus Pirate Daughterboard

The Bus Pirate daughterboard integrates programming, debugging, and interface tools, supporting protocols like I2C, SPI, and UART. It simplifies learning device behaviors through interactive diagnostics without the need for writing code or building prototypes.

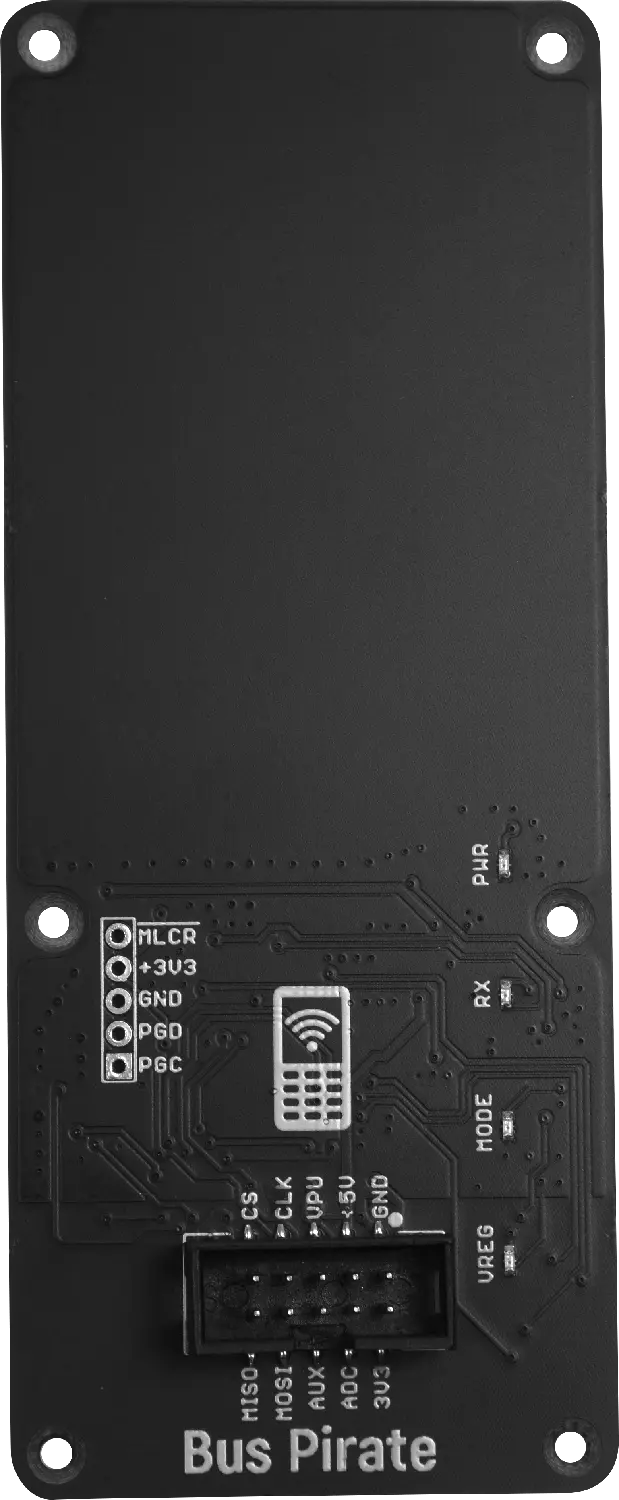

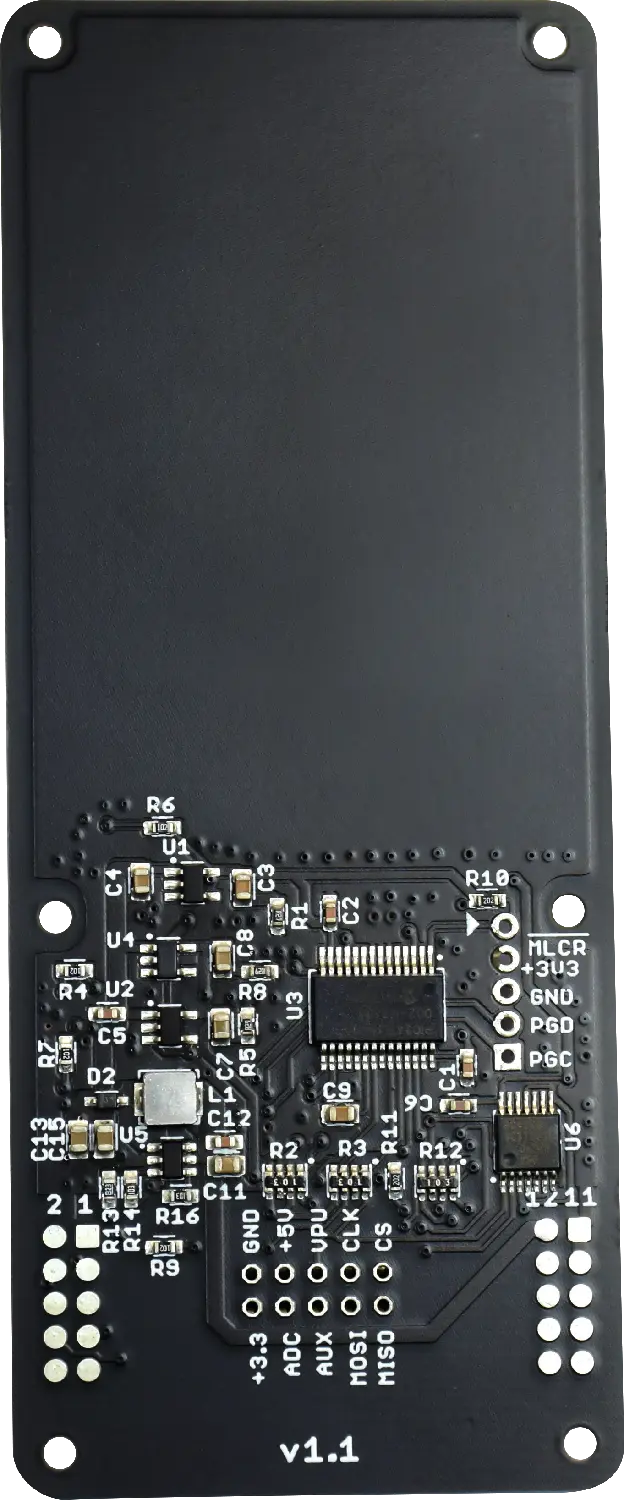

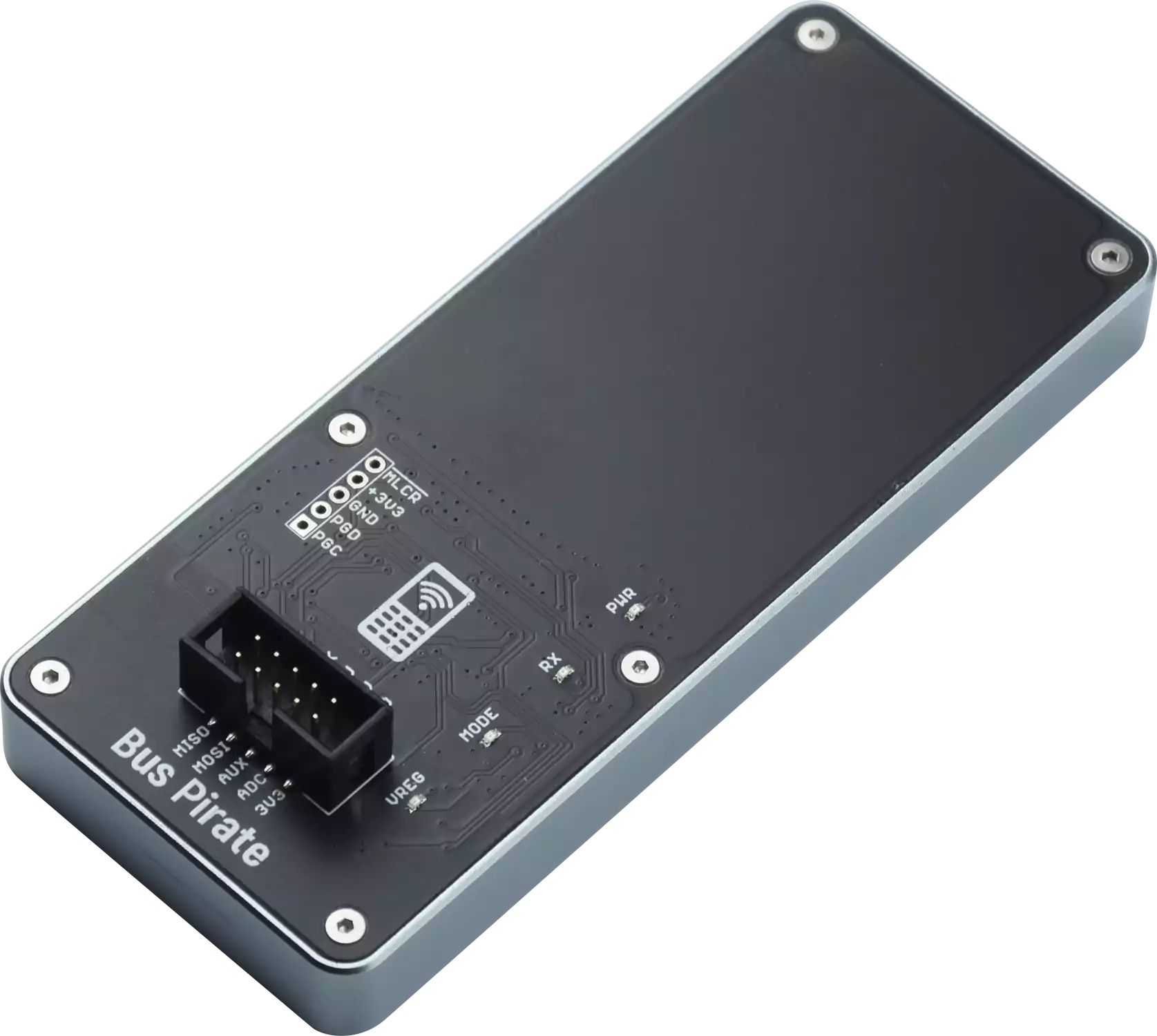

The Bus Pirate daughter board is designed to interface with and communicate between different electronic devices via numerous protocols such as I2C, SPI, UART, and others. The Bus Pirate daughter board is the physical board that hosts all the components necessary for the Bus Pirate's functionality. Human-speed interactive communication with an unknown device or chipset like this is a much easier way of learning its behavior, compared to writing codes, or building a prototype for testing. The Bus Pirate daughter board has rolled in all the hardware programmer, debugger, cables, and interface tools into one piece with illustrative documentation. It offers interactive diagnostic features compare to those other single-function tools. If you like to put right with digital electronics, our Bus Pirate is the go-to tool you could rely upon. You can write program or read a microcontroller, program or probe CPLDs, FPGAs, ARM micros, and other JTAG devices, can set multi-level operating voltages to pinouts, connect to serial devices over a USB to serial connection, read or write Flash and EEPROM memory chips, communicate with any SPI or I2C-based chip, passively sniff the SPI or I2C bus while in use to record the traffic.
